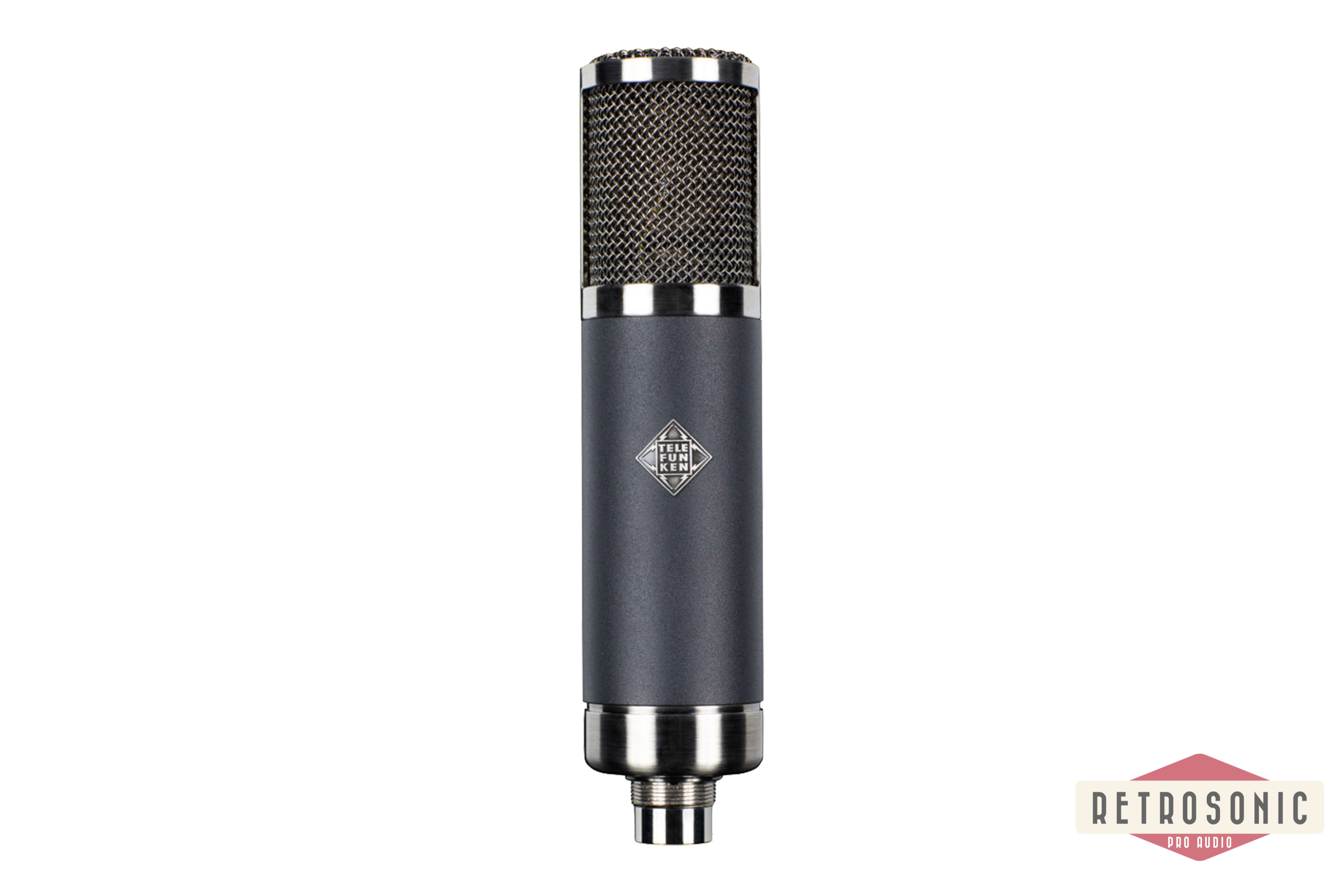

Telefunken TF47 Three-Pattern Tube Microphone

The TF47 is a new design based on the “German” sound, drawing inspiration from the historic U47 and M49. With a deep low end and a forward midrange, the TF47 is excellent for adding depth and presence to any source. These characteristics make it especially ideal for recording vocals, guitar amps, and drums.

At the heart of the TF47 is an all-brass K47-style capsule, new old stock 5840W vacuum tube, and custom-made historically accurate BV8 transformer (as found in the U47). These components deliver a warm and punchy sound reminiscent of the U47 with a pleasant top end articulation that sits perfect in a mix.

Key Features:

Forward mid-range, reminiscent of the U47
Smooth and detailed top end
Full and round low end
Hand assembled in the USA
K47-style capsule and BV8 transformer, similar to the U47

Applications:

R&B, rap or aggressive vocals, female soul vocals
Upright bass
Toms and kick out
Trombone
Cello
Percussion
Accessories

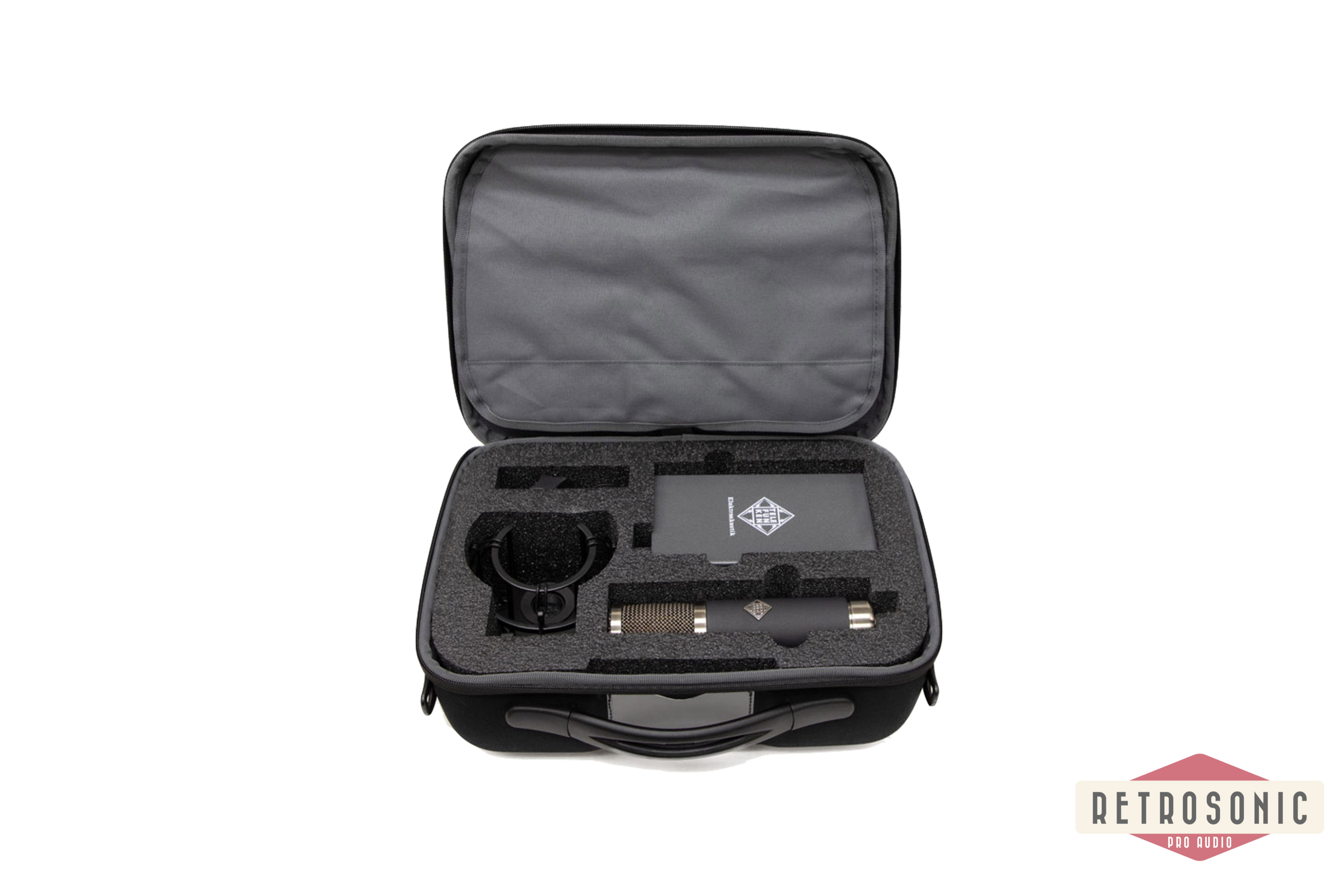

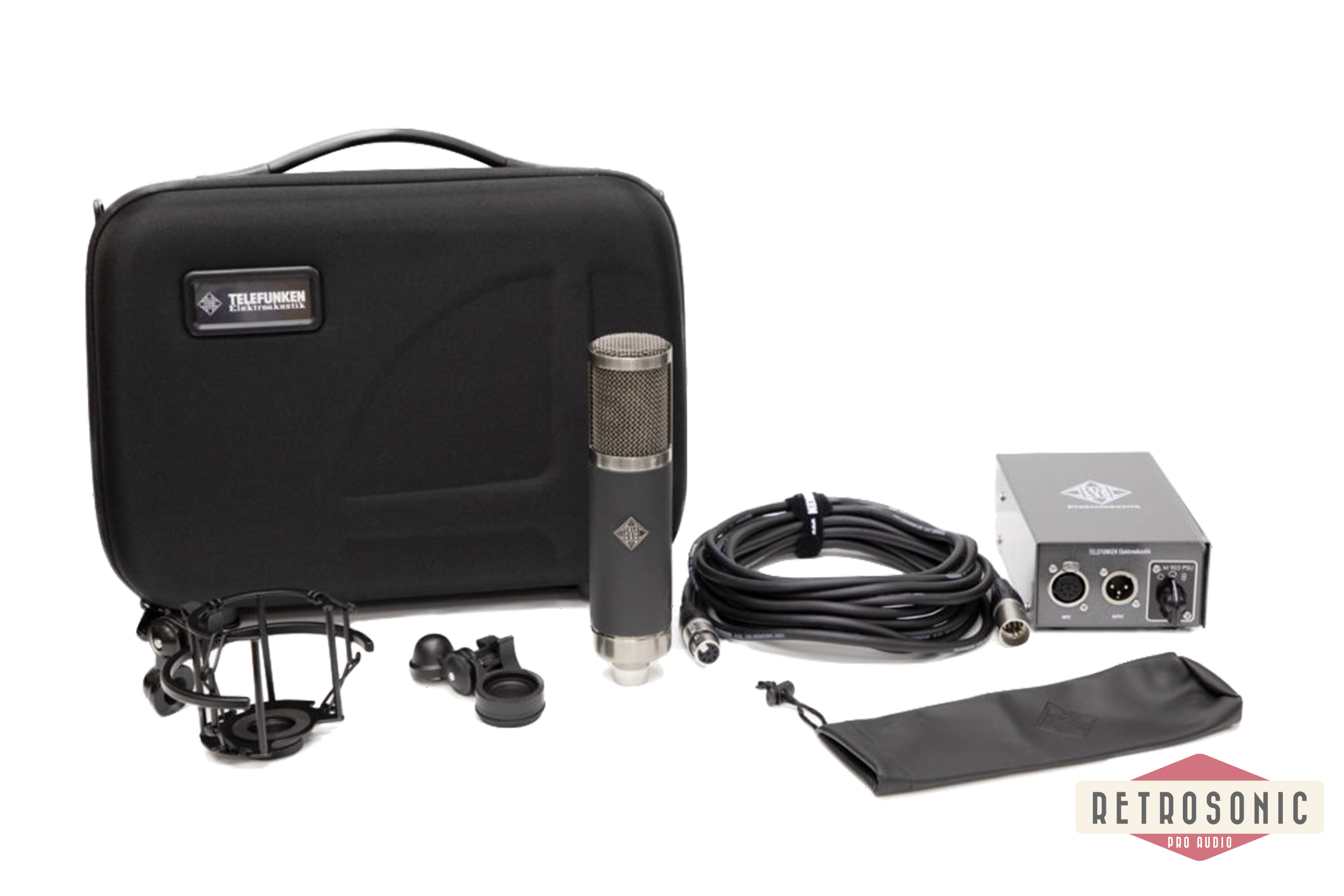

Every TF47 microphone system comes with a multi pattern M 903 Power Supply, M 803 Tube Microphone Cable, ZC03 Shell Case, M 703 Shock Mount, M 782 Stand Mount, and Microphone Sleeve.

Type: Condenser Pressure Gradient
Capsule: TK47 Center Terminated Diaphragm
Tube Type: 5840W (New Old Stock)
Transformer: Custom Wound TELEFUNKEN BV8
Polar Pattern: Cardioid, Omnidirectional, Figure-8
Frequency Range: 20Hz - 20kHz
Sensitivity: 22 mV/Pa
THD at 1kHZ at 1Pa (Amplifier): < 0.3%
Output Impedance: < 300 Ω
Maximum SPL (for 1% THD): 125 dB
S/N Ratio: 84 dBA
Self Noise (Amplifier): 10 dBA
Dimensions/Size: 200 mm L x 46 mm Dia
Weight: 710 g
Current Draw from Mains: 50 mA
Power Supply - M 903 PSU: 7 Pin Female XLR Input, 3 Pin Male XLR Output, Polar Pattern Selector
Cable: M 803- 7 Meter TELEFUNKEN Tube Microphone Cable, 7 Pin Male & Female XLRs
Shock Mount: M 703 - Shock Mount, M 782 - Stand Mount
Flight Case: ZC03 - Light Weight Carrying Case
