Telefunken ELAM-251-E 3-pattern Tube Microphone

By virtue of its smooth, yet present and open sonic character, the ELA M 251E large diaphragm tube microphone is a true classic with very few rivals. Ideal for vocals and acoustic instruments, the ELA M 251E offers an extended and focused low end, a detailed mid-range response and a silky top-end.

The TELEFUNKEN ELA M 251E includes an edge terminated, dual backplate CK12 capsule capable of cardioid, omnidirectional and bidirectional polar patterns, a 6072A vacuum tube and a Haufe T14/1 output transformer (the same found in the AKG Acoustics GmbH C12). Modern component choices allow for tighter tolerance specifications, better current handling and a lower self-noise than their vintage counterpart. Each reissue is 100% true in every detail to the original (the parts are interchangeable with the 50+ year old originals), and will deliver the same sonically opulent response that made the ELA M 251E one of the world’s most sought after recording tools.

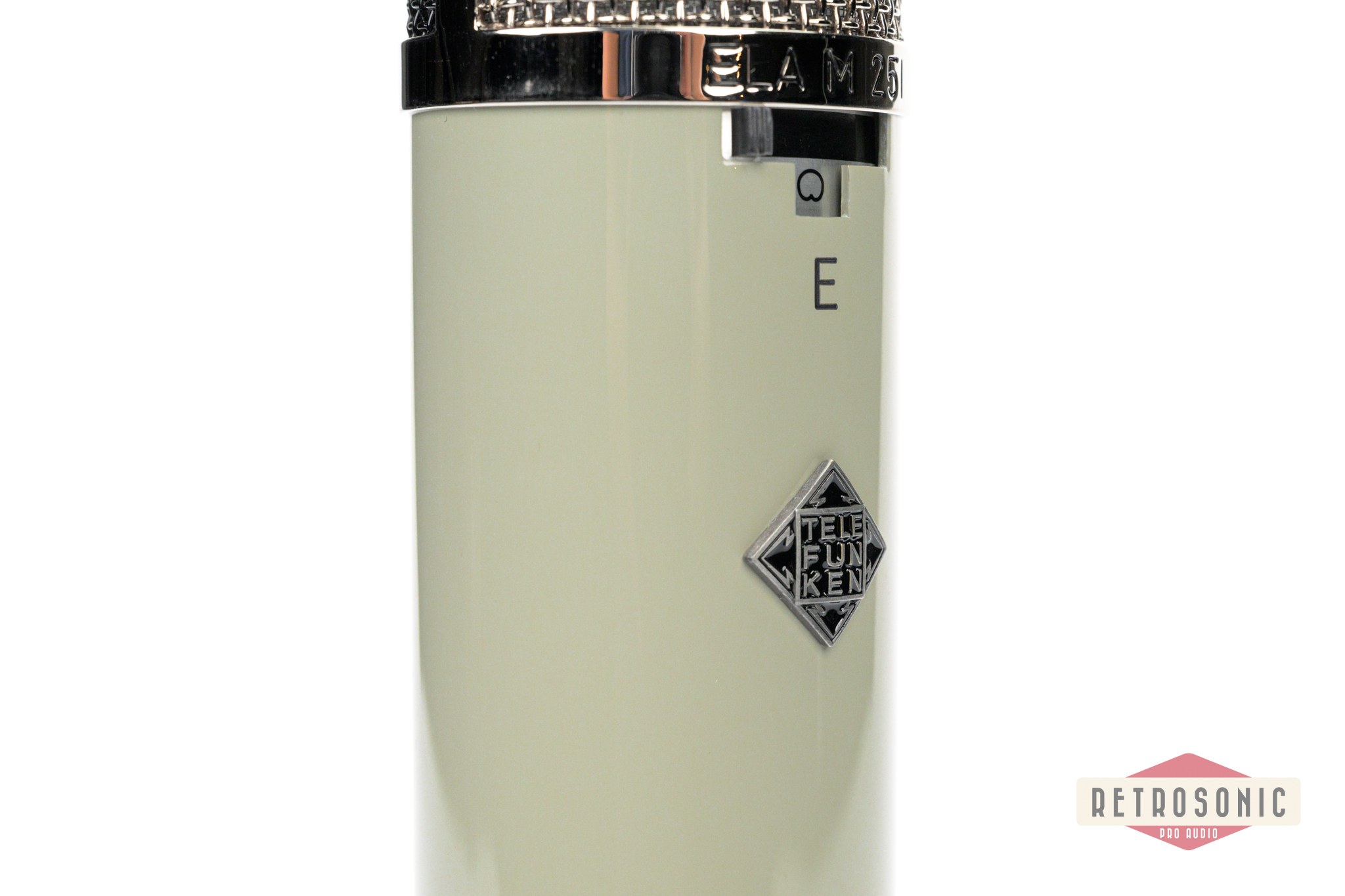

The TELEFUNKEN Elektroakustik recreation of the ELA M 251E large diaphragm tube microphone is exact in every detail, down to the historically accurate cosmetic finish and structural design. The amplifier circuit containing the vacuum tube and output transformer is housed in a molded plastic enclosure, while the capsule is suspended upon a moving polar pattern switch within the head grille. The classic diamond shaped TELEFUNKEN logo badge is attached to the front of the microphone with the ELA M model name engraved at the base of the headgrille.

Each ELA M 251E microphone comes complete with M 950E power supply, M 850E 25’ Sommer tube microphone cable, Rycote shockmount, FC50 locking flight case and WB50 wooden microphone box.

Type: Pressure Gradient Condenser
Capsule:
CK12 - 25mm Edge Terminated Diaphragm
Tube Type: 6072A
Transformer: Haufe T14/1
Polar Pattern: Cardioid, Omnidirectional, and Bidirectional
Frequency Range: 20Hz - 20kHz, ± 3 dB
Sensitivity: 17mV/pa ± 1 dB
THD at 1kHZ at 1Pa (Amplifier): < 0.2%
Output Impedance: 200 Ω
Maximum SPL (for 1% THD): 130 dB
S/N Ratio: 85 dBA
Self Noise (Amplifier): 9dBA
Dimensions: 216 mm L x 50 mm Dia
Weight: 596 g
Current Draw from Mains: 80 mA

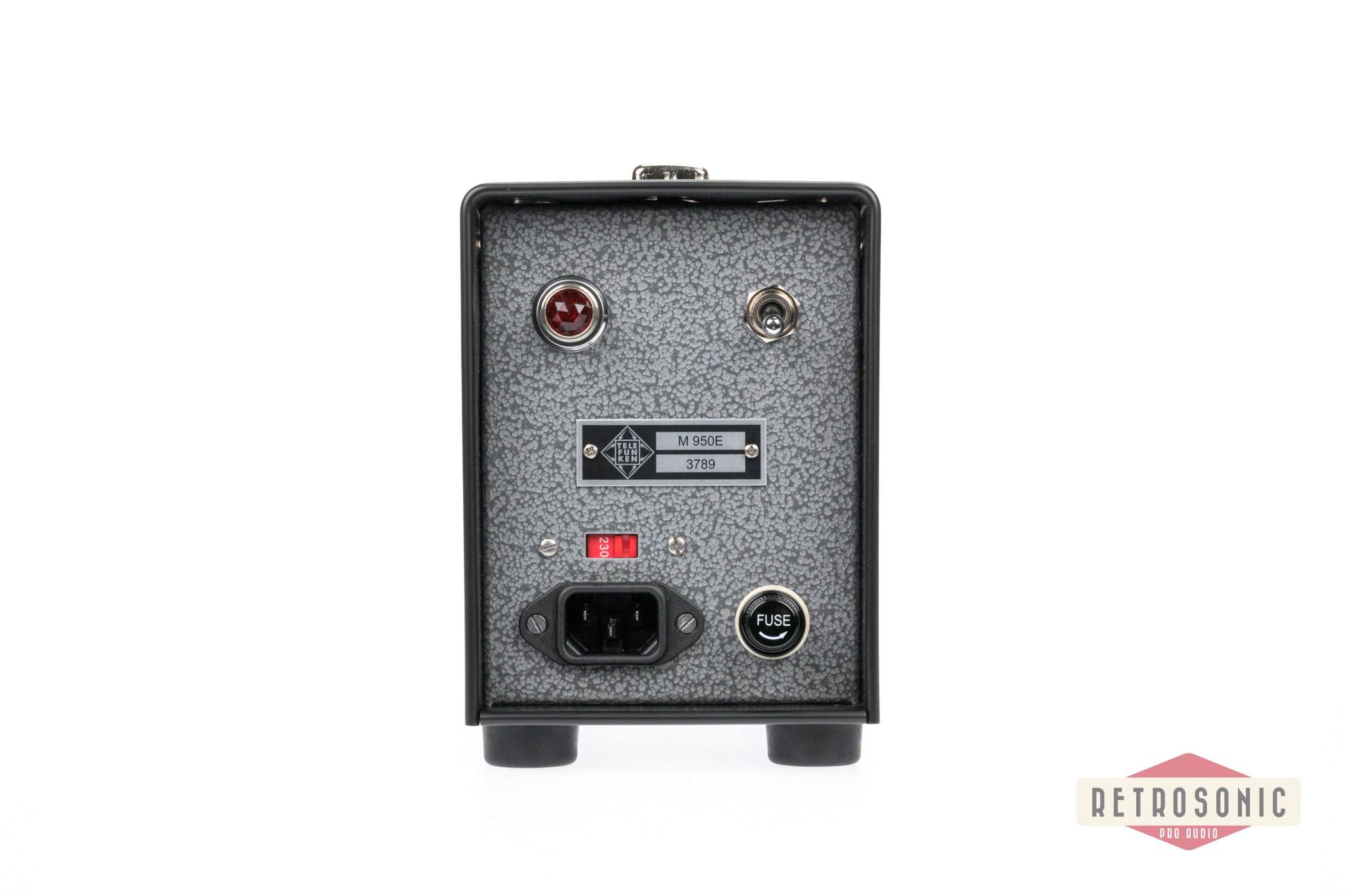

Power Supply:M 950E - 7 Pin Female XLR Input, 3 Pin Male XLR Output

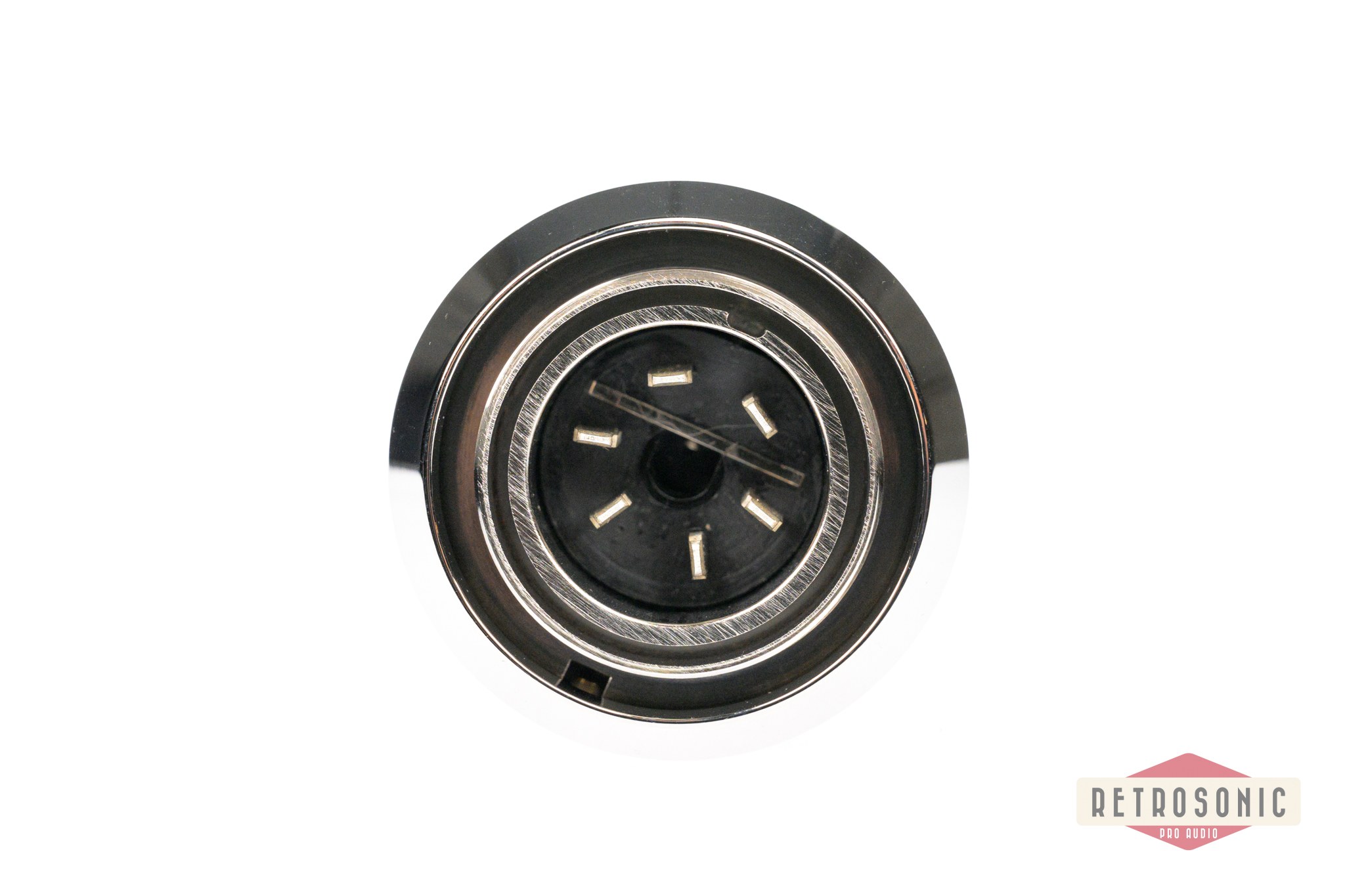

Cable: M 850E - 25 ft Sommer Cable, Vintage Compatible 6 Pin Female Stand Mount, 7 Pin Male XLR
Wooden Box:WB50

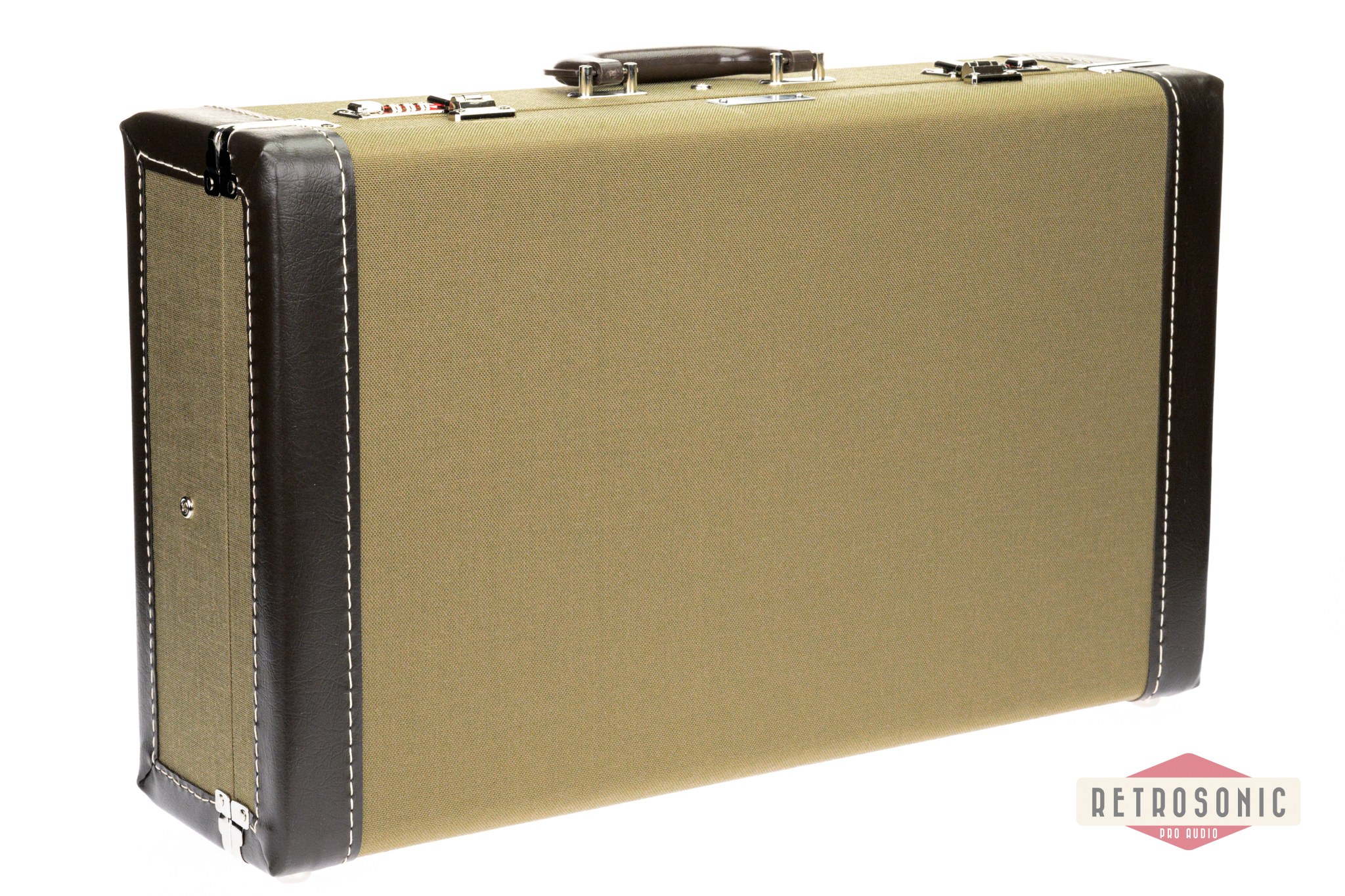

Flight Case: FC50 - Vintage Style Locking Combination Flight Case, FC50S for Stereo Set
