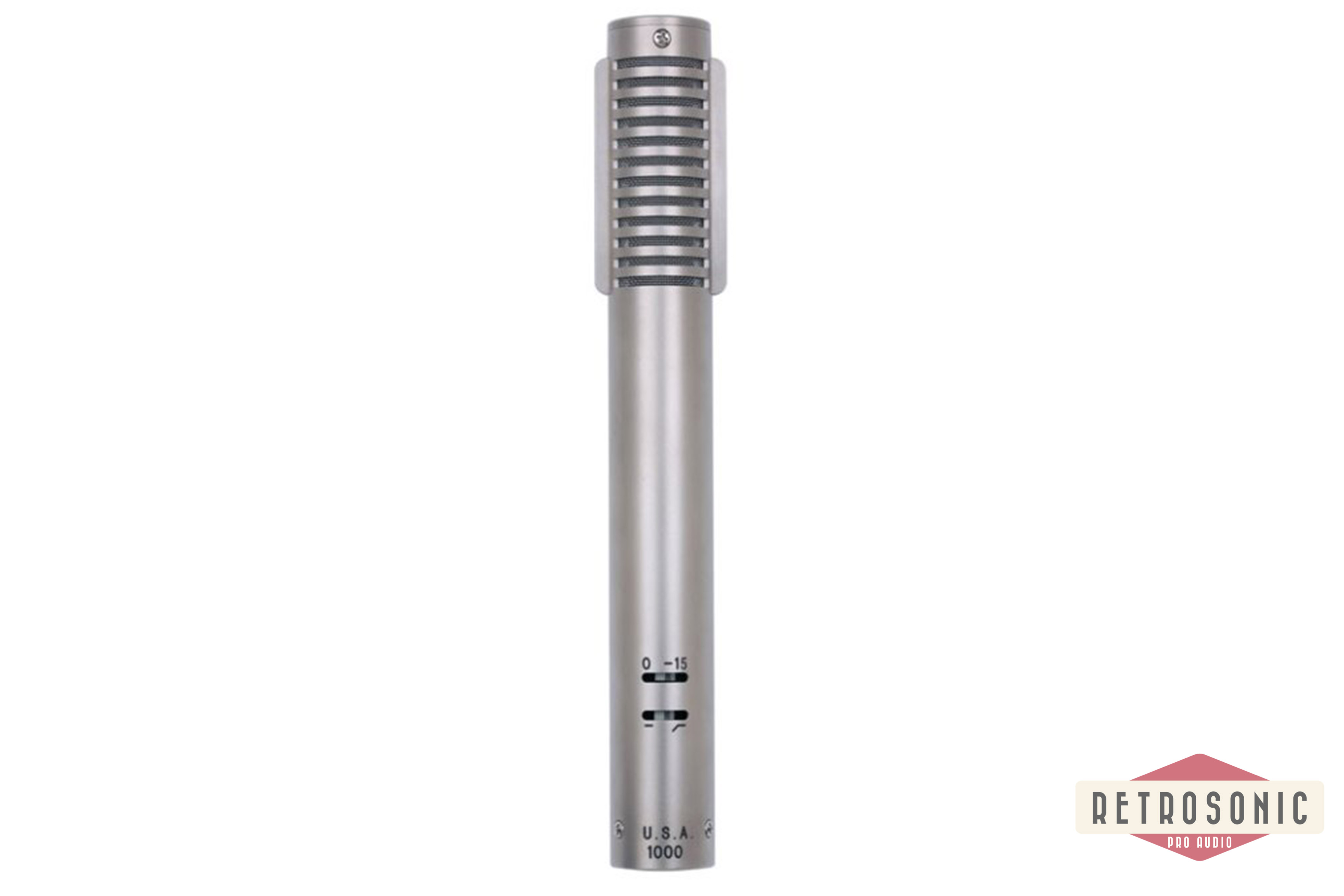

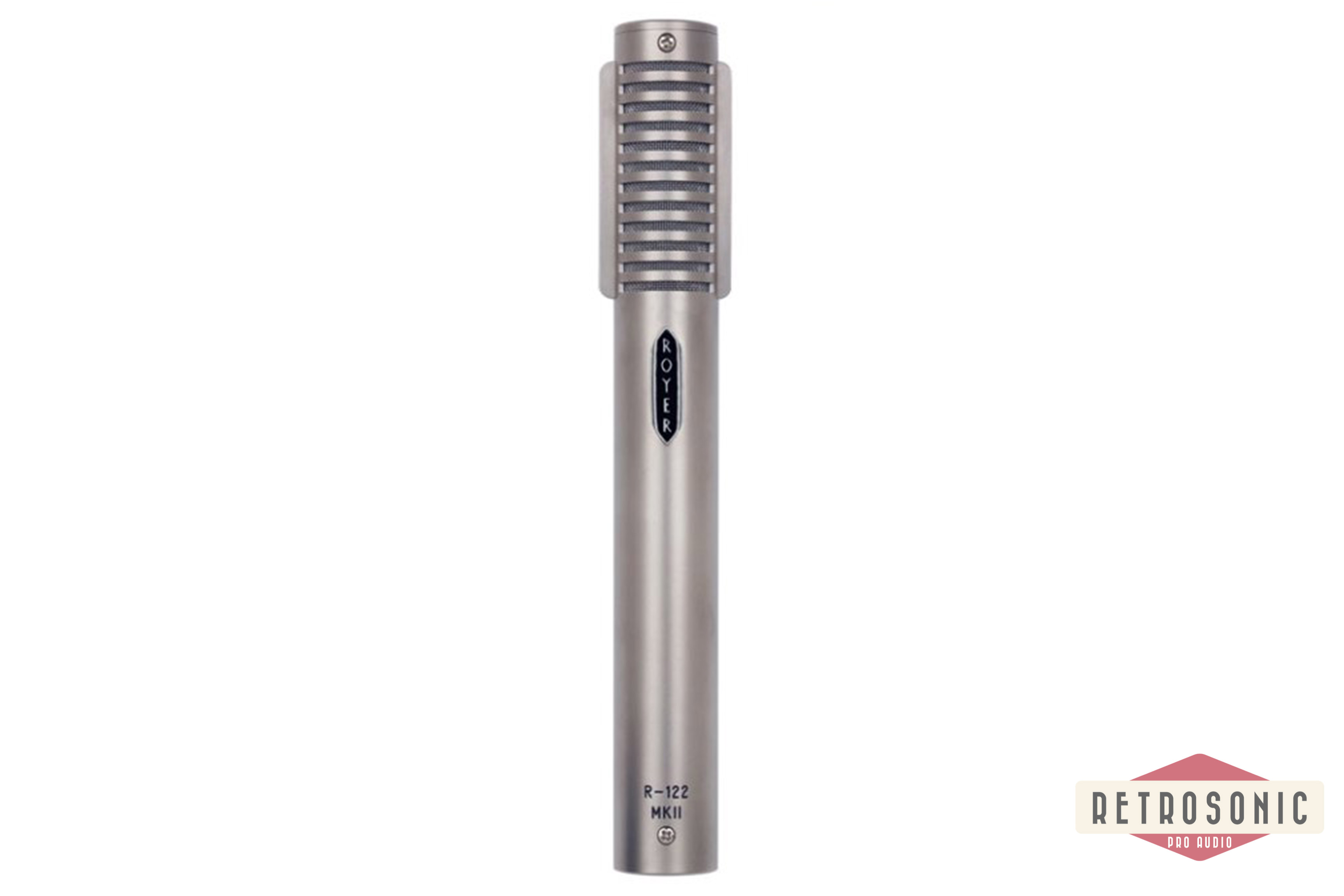

Royer R-122 Mk2 Active Ribbon Large Ribbon, bass cut & pad

In 2002 Royer introduced the R-122, the world’s first phantom powered, active ribbon™ microphone. It was a revolutionary development in ribbon mics, combining impedance matching circuitry with condenser-like output levels that allowed the R-122 to be used on even the quietest sound sources. It also allowed the mic to be paired to virtually any preamplifier.

The R-122 MKll takes the R-122 to a whole new level, delivering unprecedented flexibility for ribbons via the addition of a switchable -15 dB pad and a switchable bass-cut filter. The switches are completely out of the circuit when disengaged so when both are off, the microphone is for all purposes an original R-122. The switches are located on the back of the microphone and recessed to prevent accidental activation.

Acoustic Operating Principle: Electrodynamic pressure gradient with active
electronics.
Polar Pattern: Figure-8
Generating Element: 2.5-micron aluminum ribbon
Magnets: Rare Earth Neodymium
Frequency Response: 30 - 15,000 Hz ±3 dB
Sensitivity: -36 dB (re. 1v/pa ±1 dB)
Switchable Pad: -15 dB
Switchable Bass Cut: 100 Hz (6 dB per octave)
Self-Noise: < 18 dB
Output Impedance: 200 Ohms, balanced
Output Connector: Male XLR 3-pin (Pin 2 Hot)
Rated Load Impedance: 1K-Ohm minimum
Maximum SPL: 135 dB @ 30 Hz
Power Requirements: 48-Volt Phantom Only
Supply Current: 4 mA
Dimensions: 206mm L X 25mm W (8 1/8” L X 1” W)
Weight: 309 grams (10.9 oz)
Finish: Burnished Satin Nickel / Matte Black
Chrome (optional)
Accessories: Protective wood case, mic sock

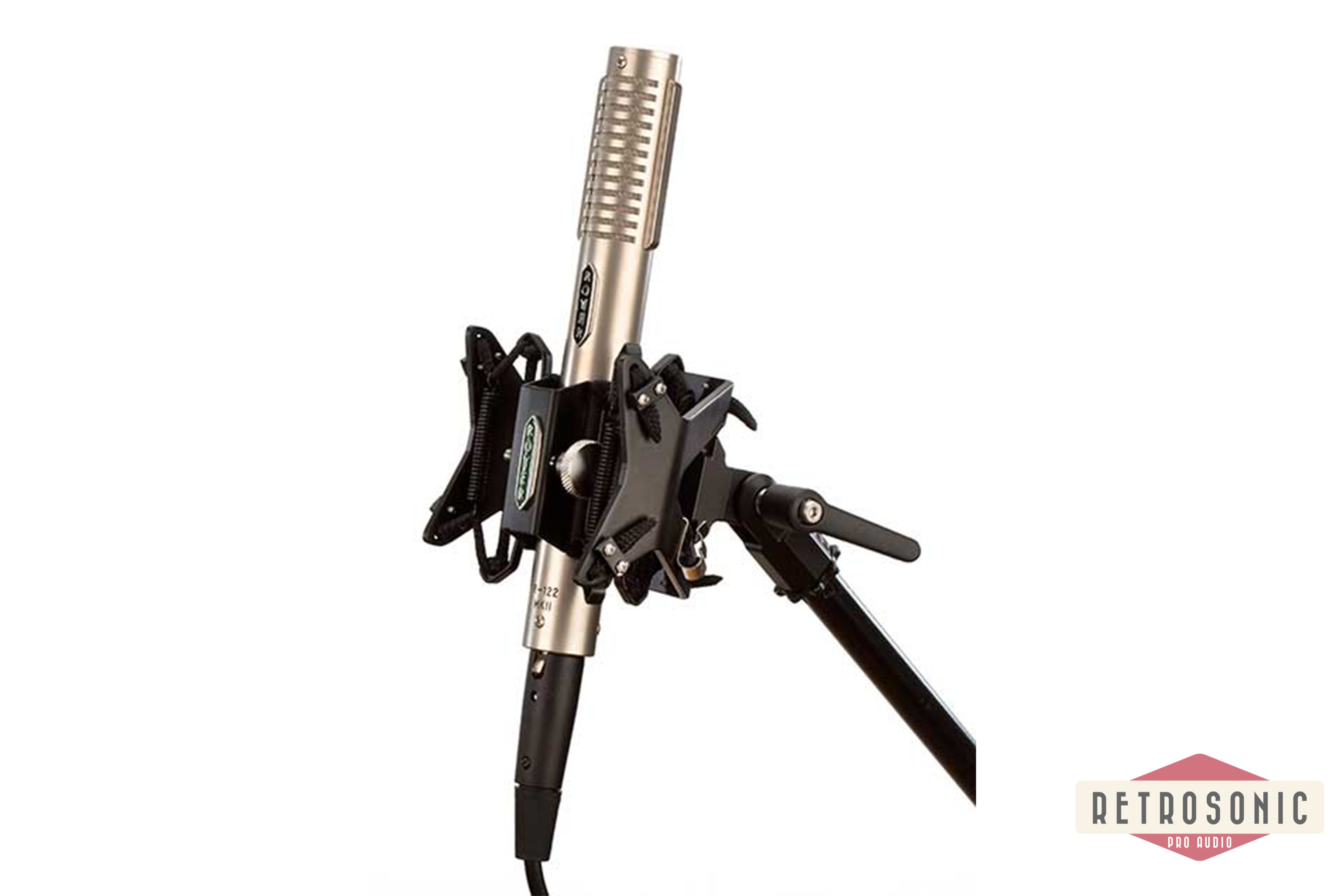

Optional Accessories: Wind screen, shock mount
Microphone Warranty: Lifetime to original owner (repair or replace
at Royer’s option)
Ribbon Element Warranty: One Year
