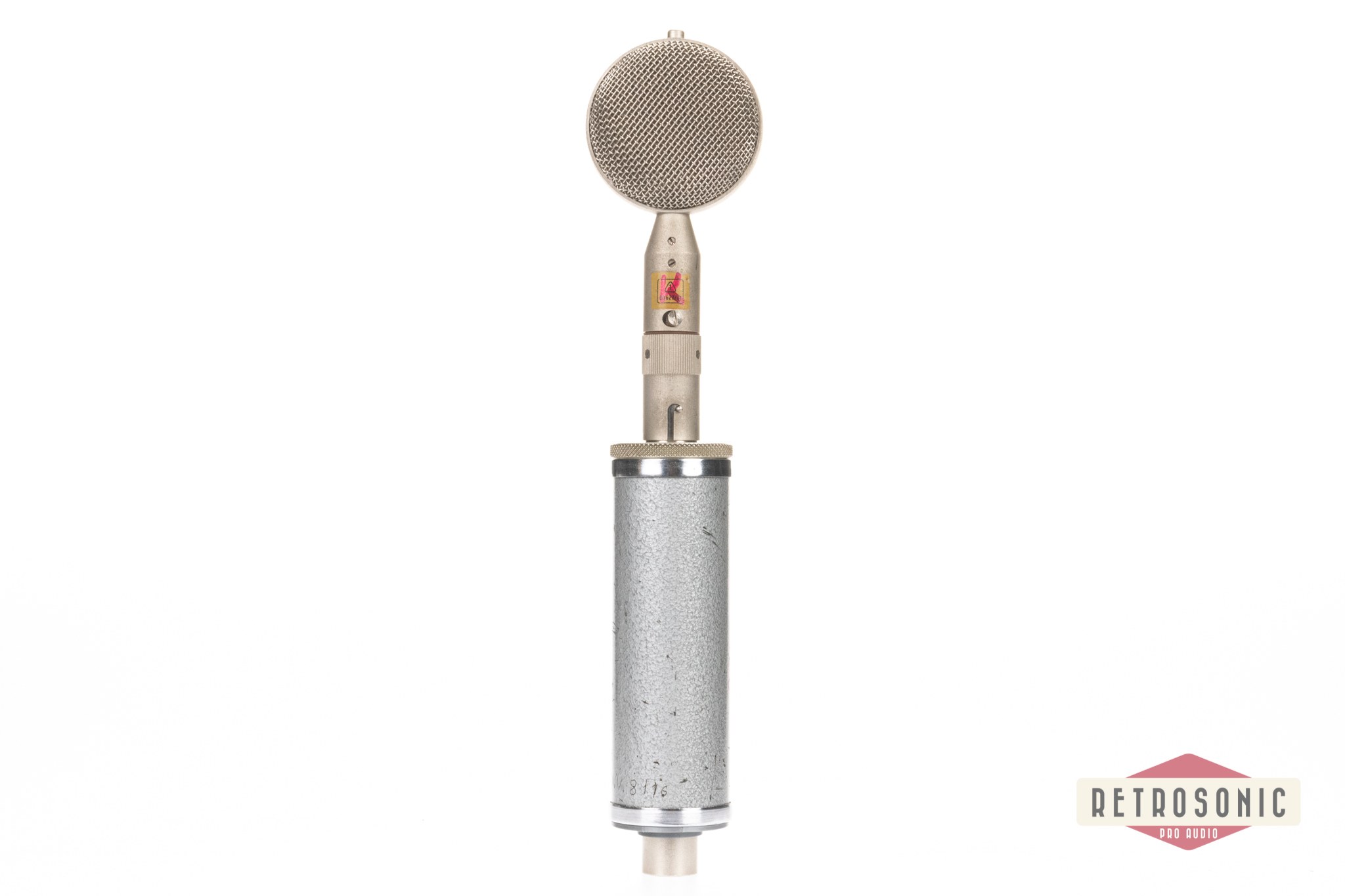

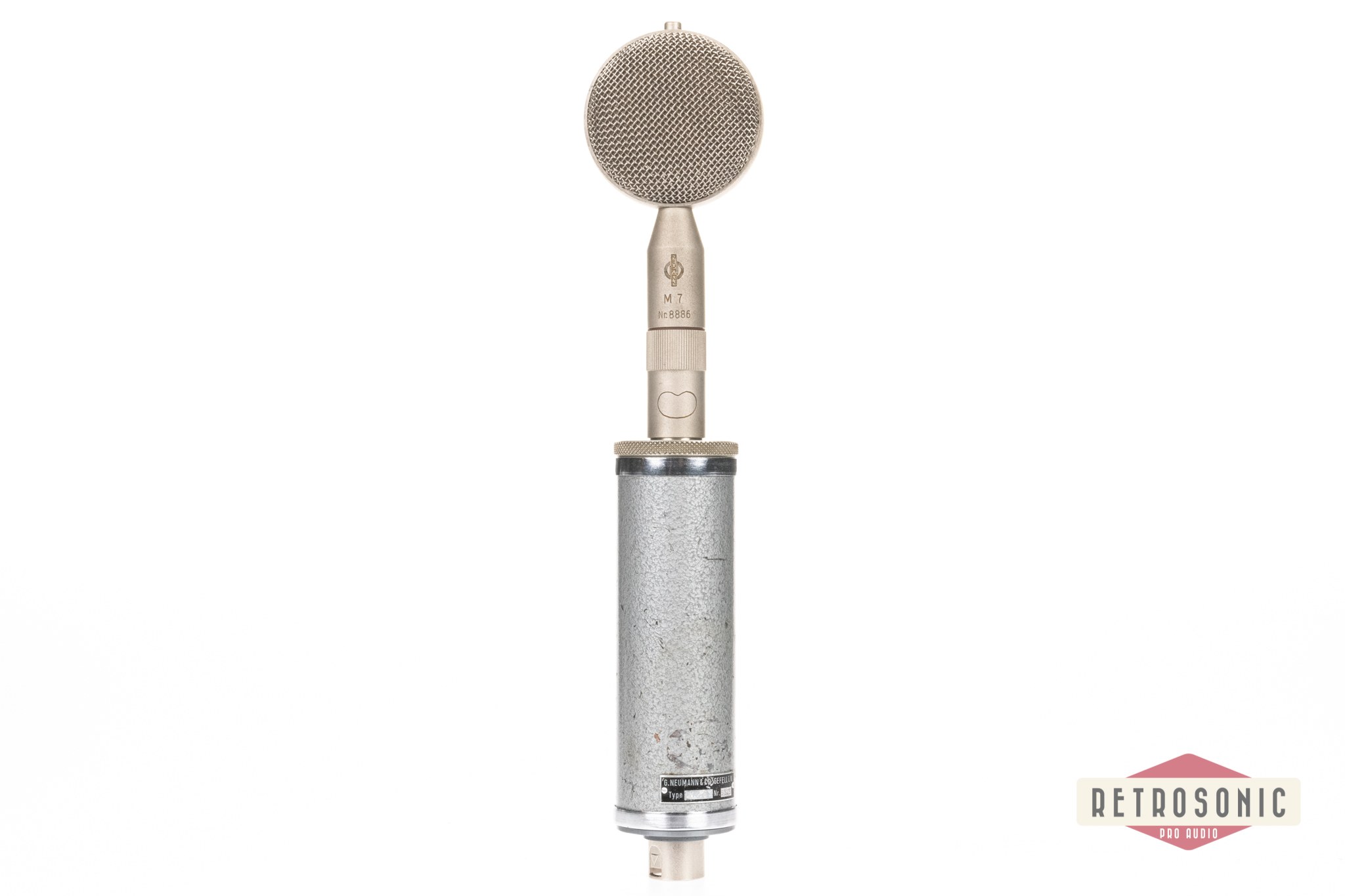

Neumann Gefell CMV563 with M7 Capsule #5325

Neumann Gefell produced the The CMV 563 condenser microphones from 1956 til 1971. This tube microphone became popular for its great price/performance ratio.

CMV 563 comes with an M7 "bayonet" capsule, but it can also be paired with an M55k omnidirectional capsule.

The M7 capsule barely needs an introduction, it is a cardioid capsule found in the Neumanns famous U47 mic.

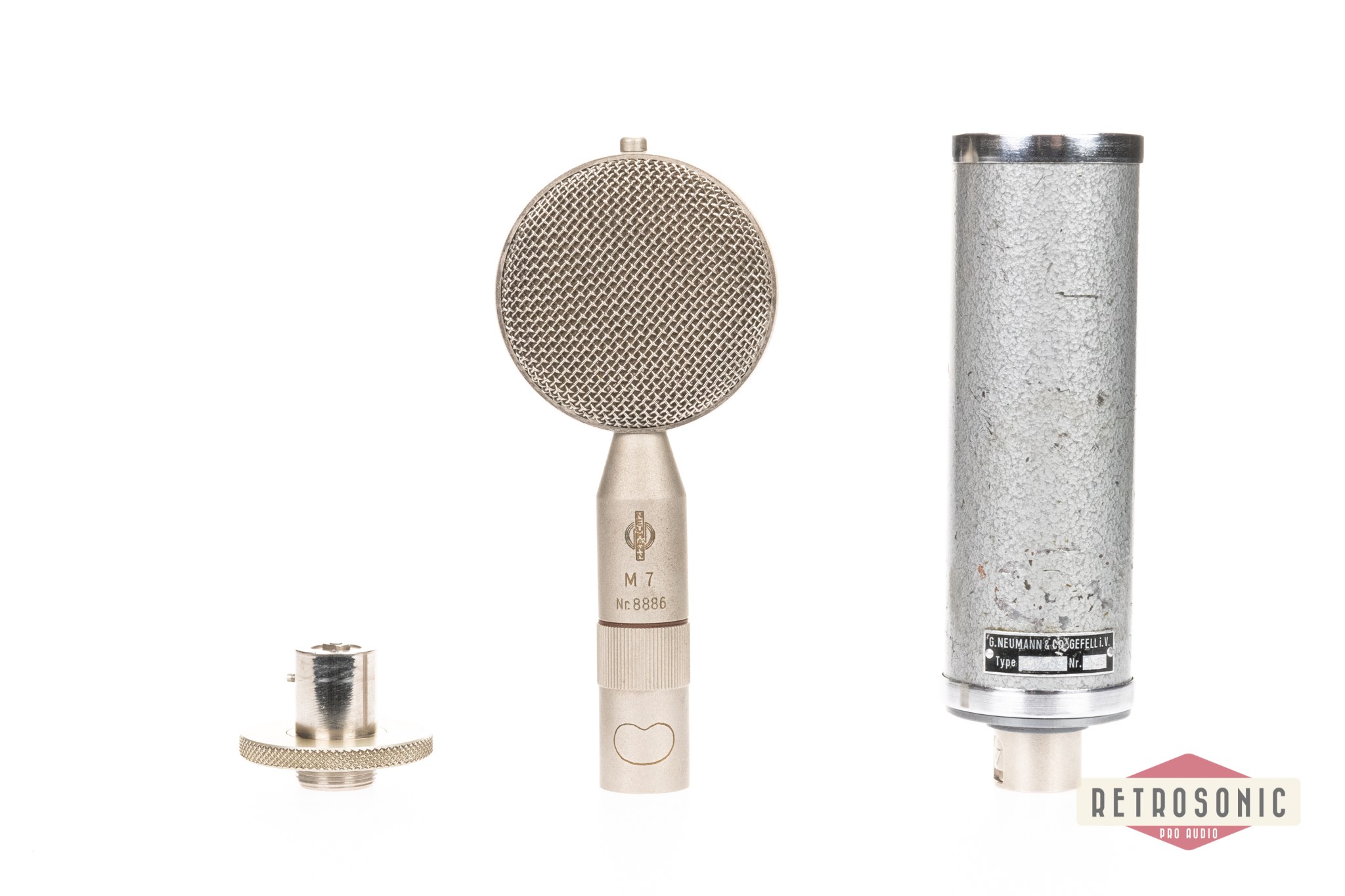

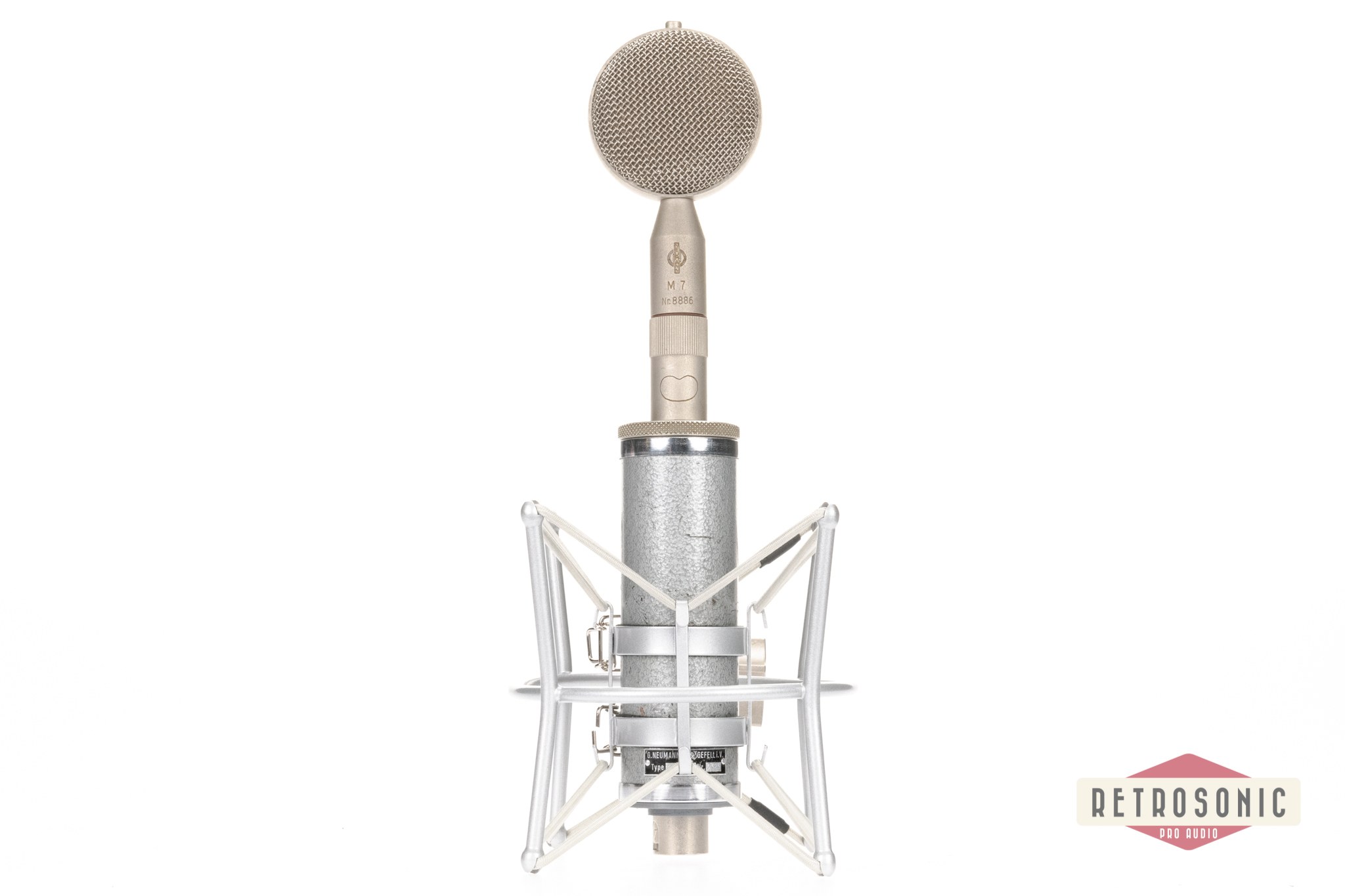

The capsule is separated from the microphone amplifier body with a short pillar 'stalk'. It is a dual-diaphragm, center-terminated capsule with diaphragms reskinned with Mylar/Gold of original gauge exclusively. The CMV 563 is perfect for capturing the nuances of vocals and other instruments for a nostalgic and accurate sound.

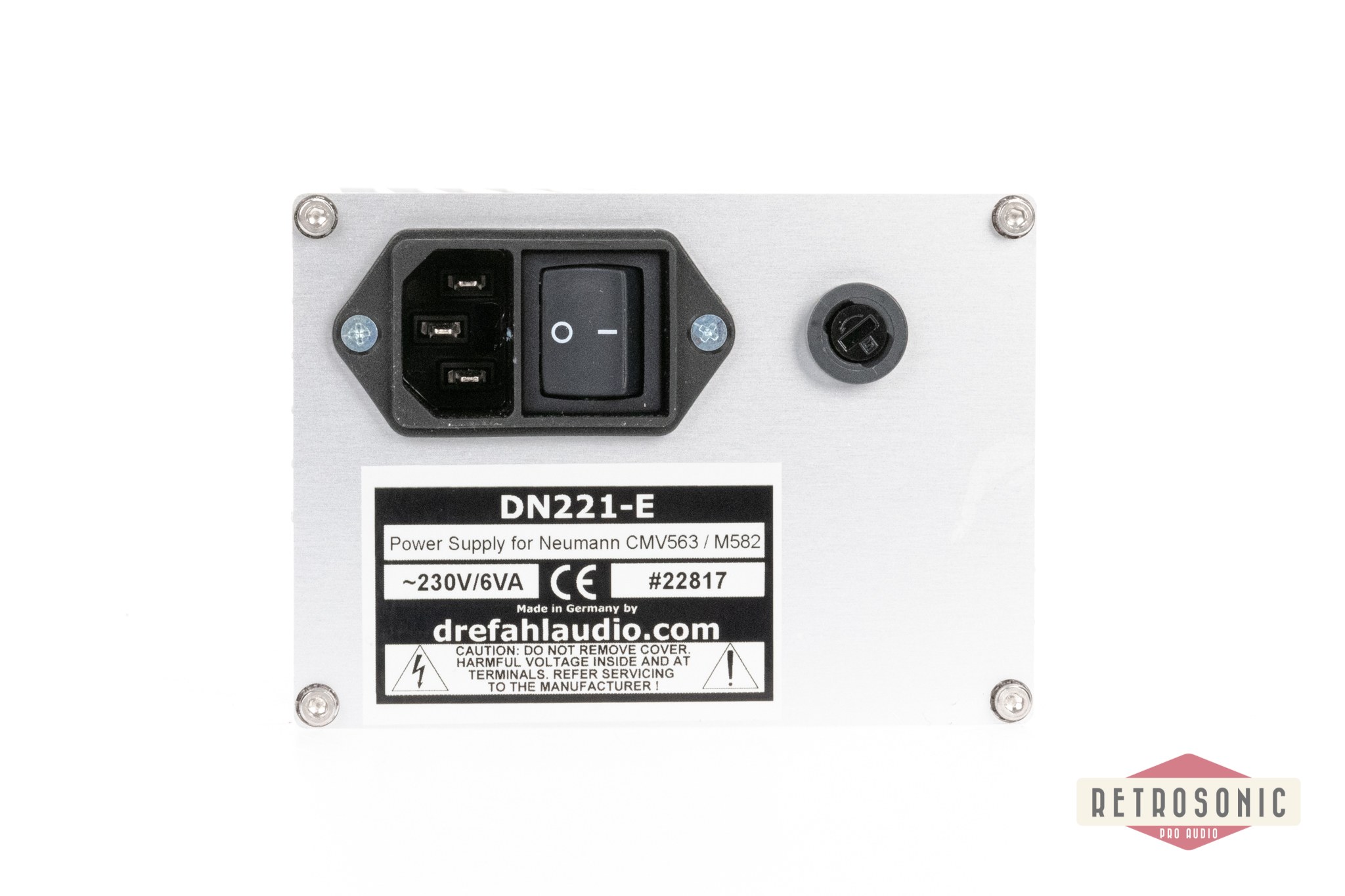

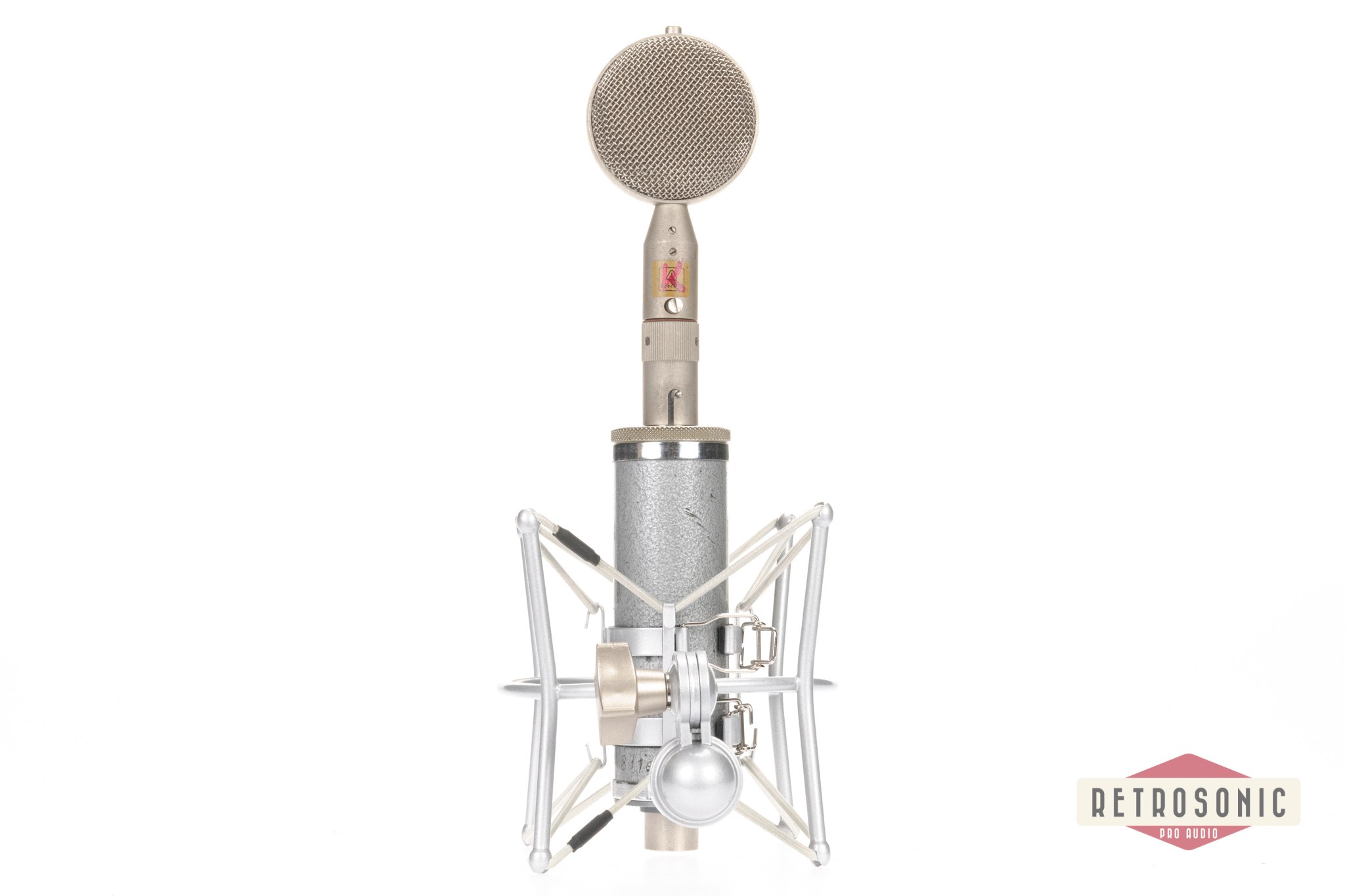

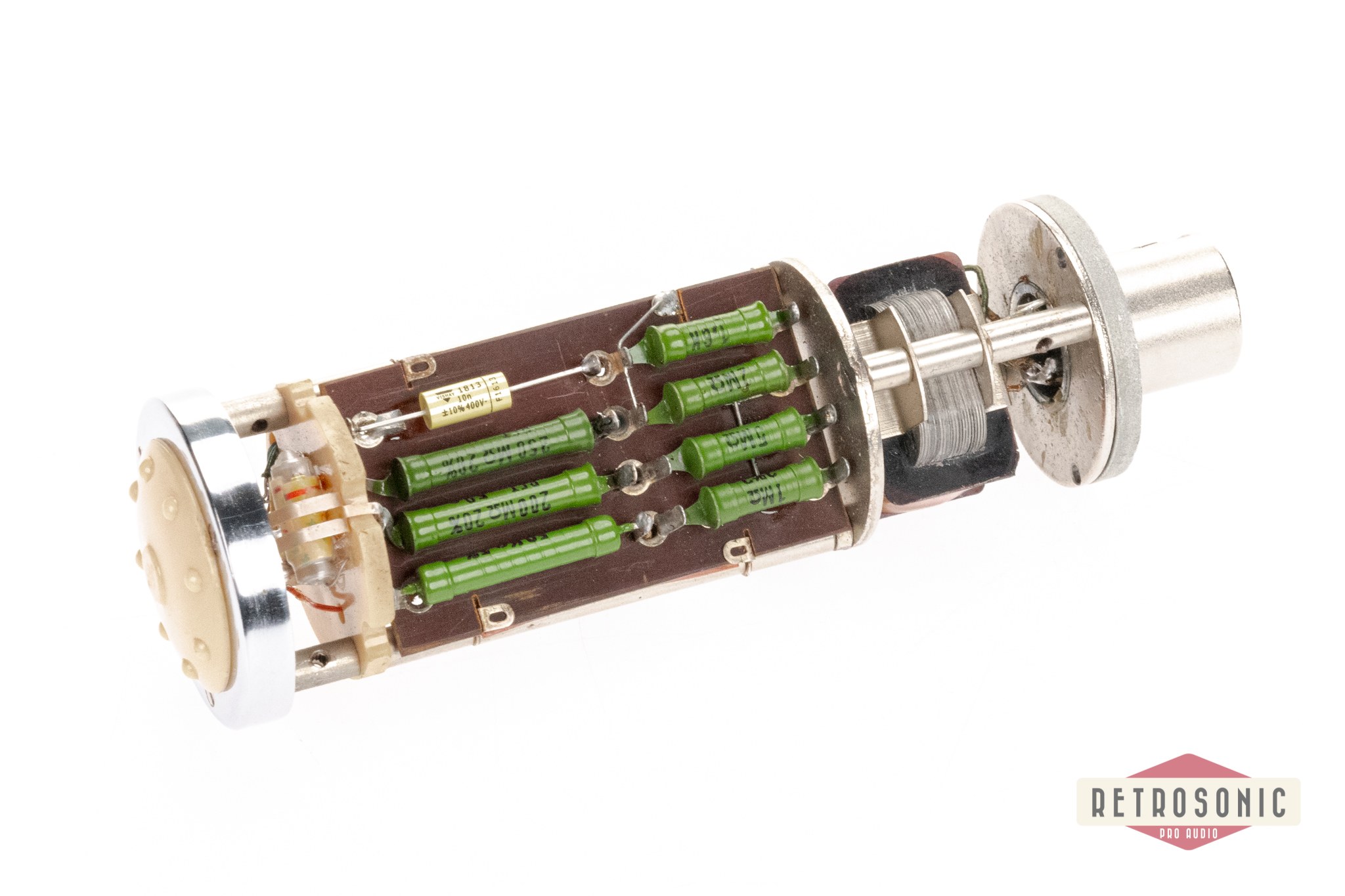

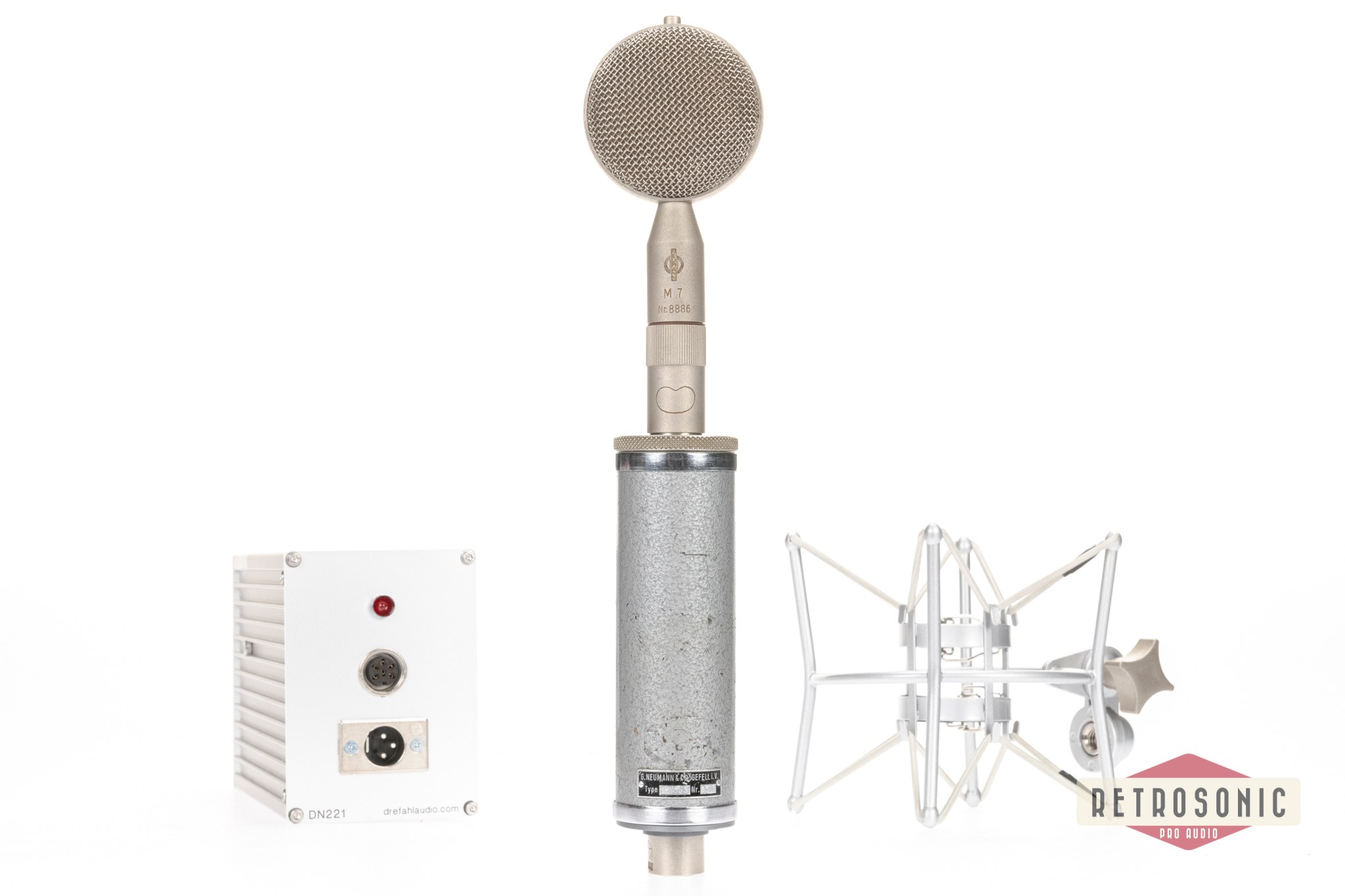

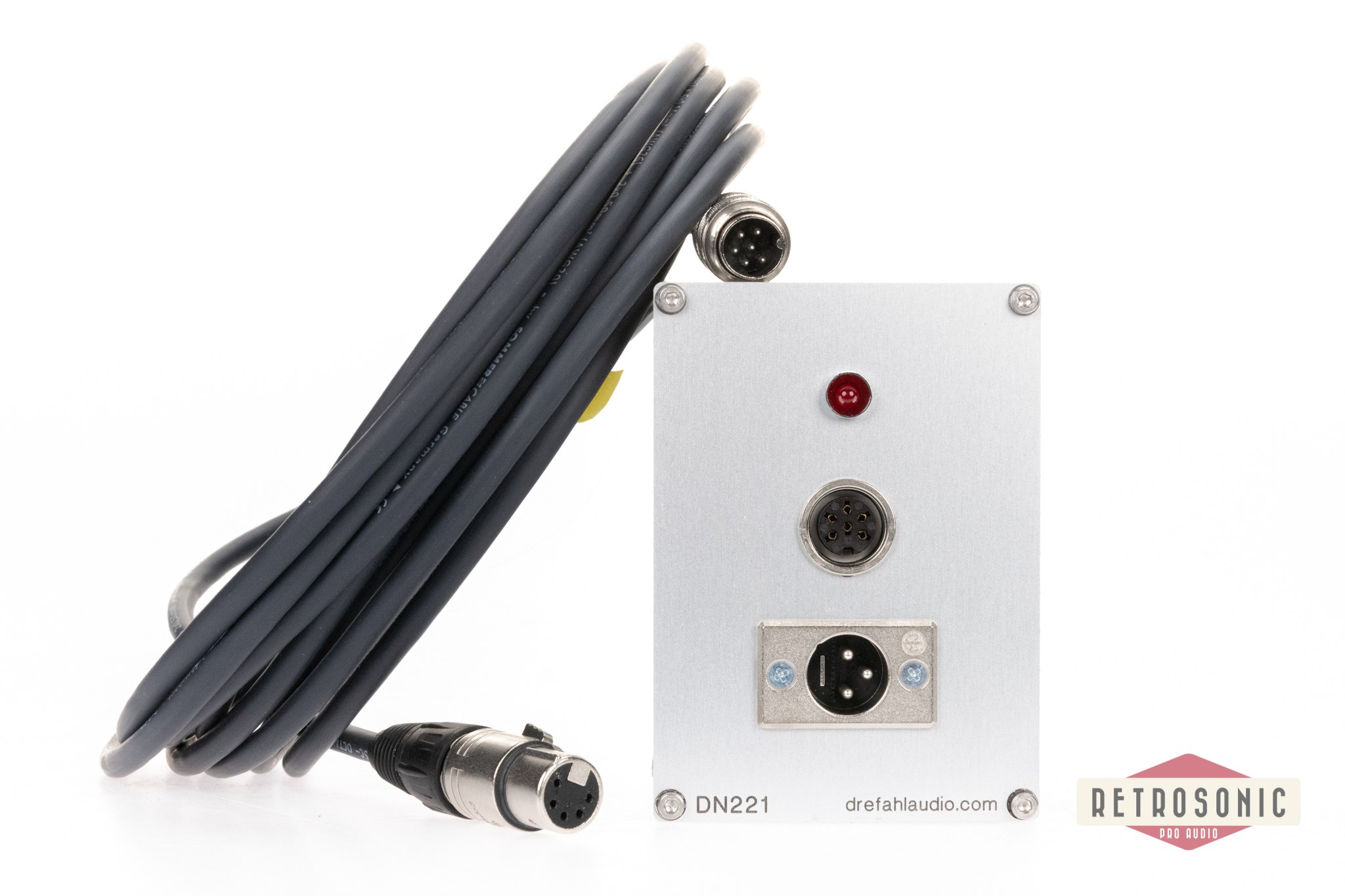

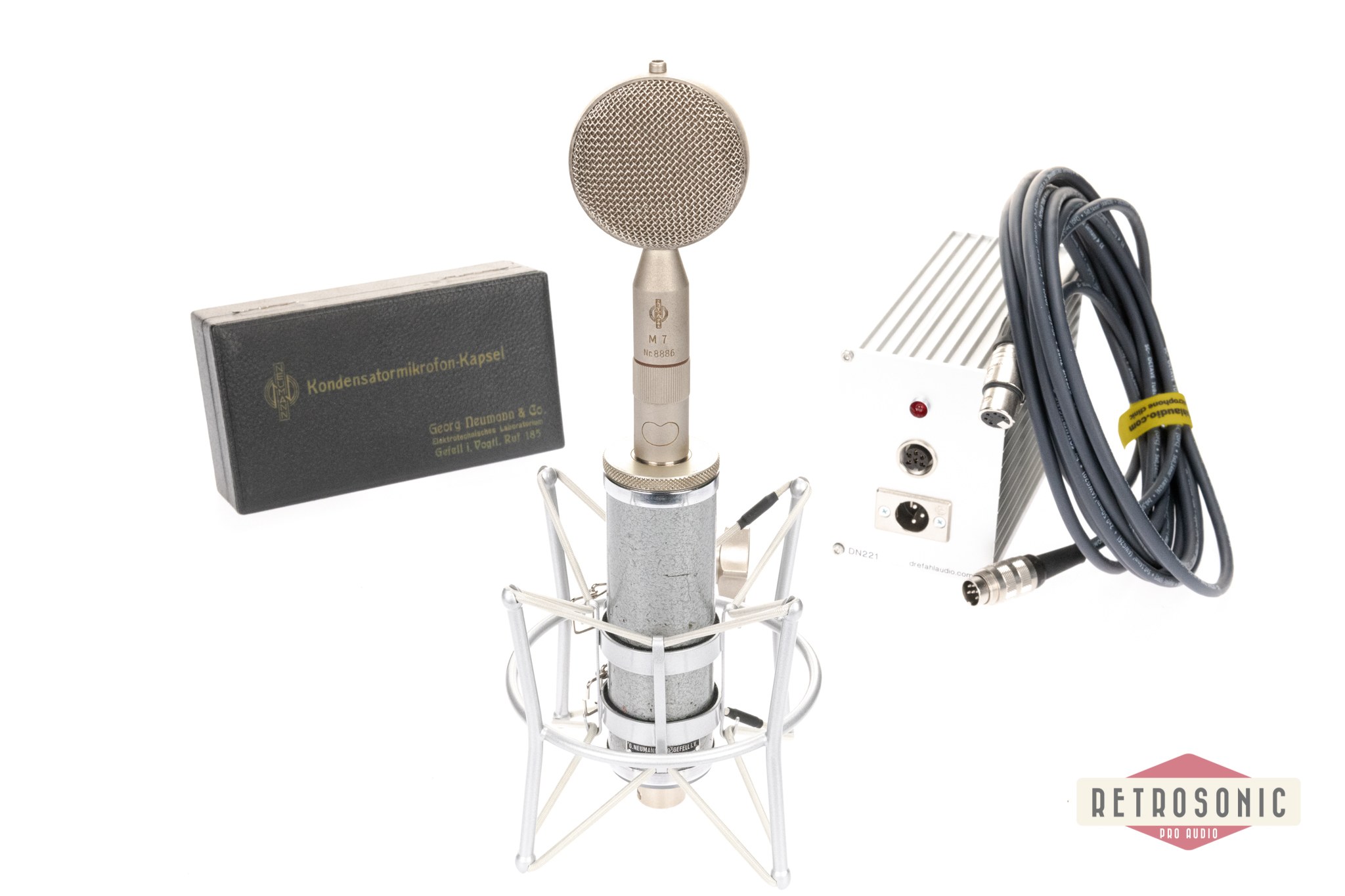

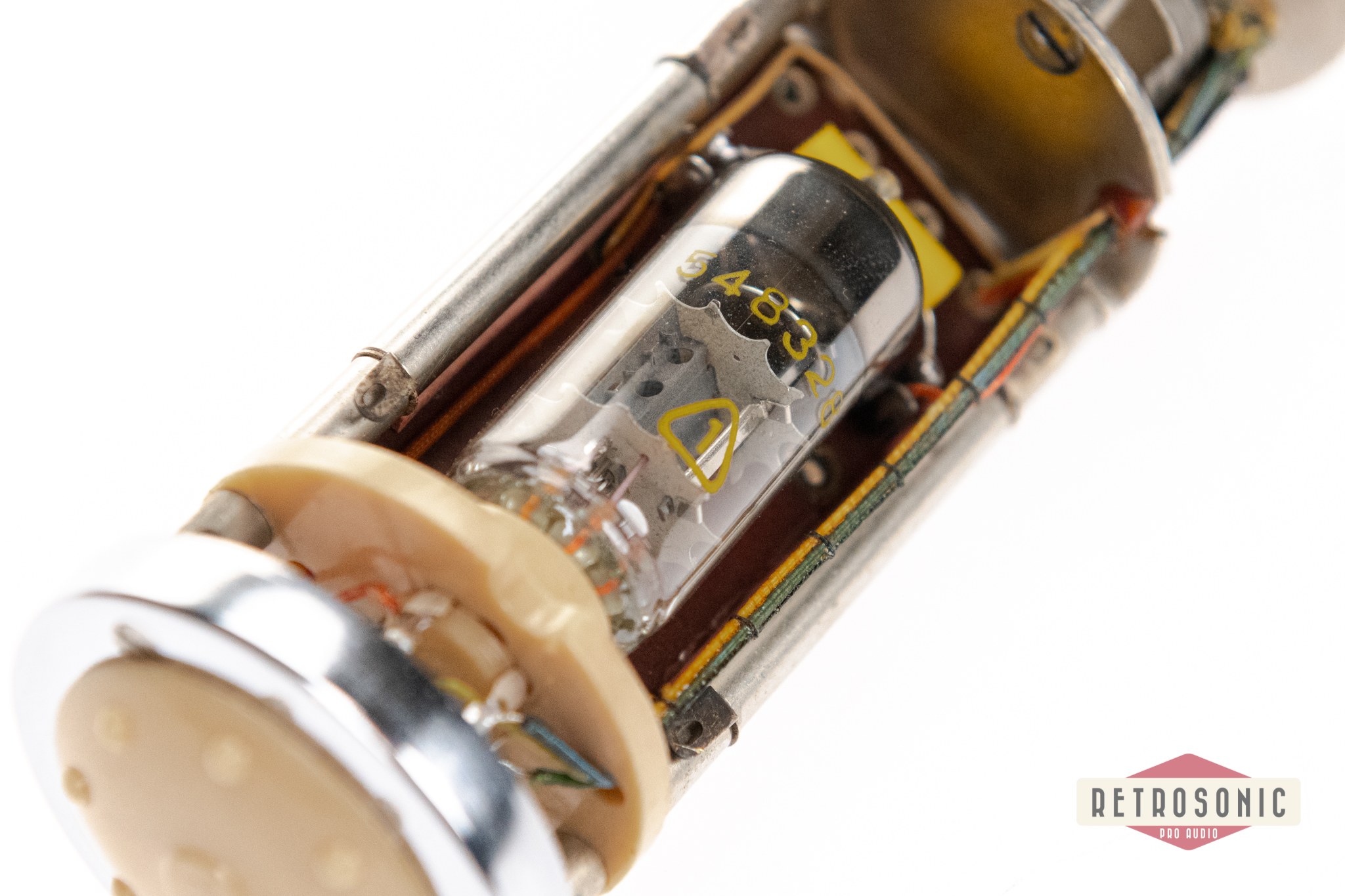

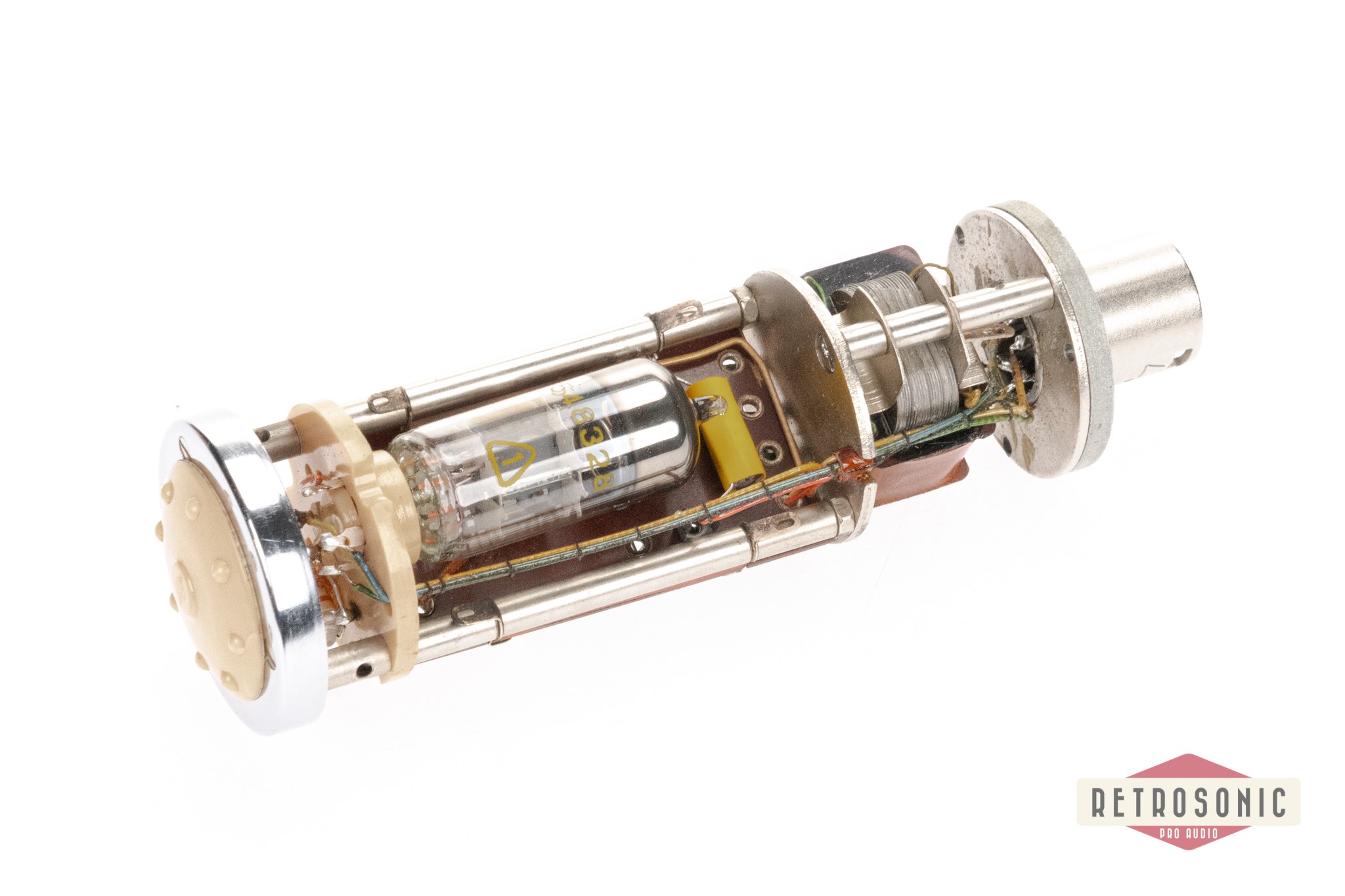

This CMV 563 has been Recapped and serviced. It comes with a brand new Drefahl DN221-E PSU & Sommer tube cable and connectors. VTC 57 Shock Mount is included.

XLR 5-pin pinout for this modded CMV563 is:
1 - 0V/ground
2 - Audio +
3 - Audio -
4 - filament voltage (+5.8V)
5 - plate voltage (+120V)

Excellent working condition, great visual condition. PSU works on 220V. EU power cord included.
