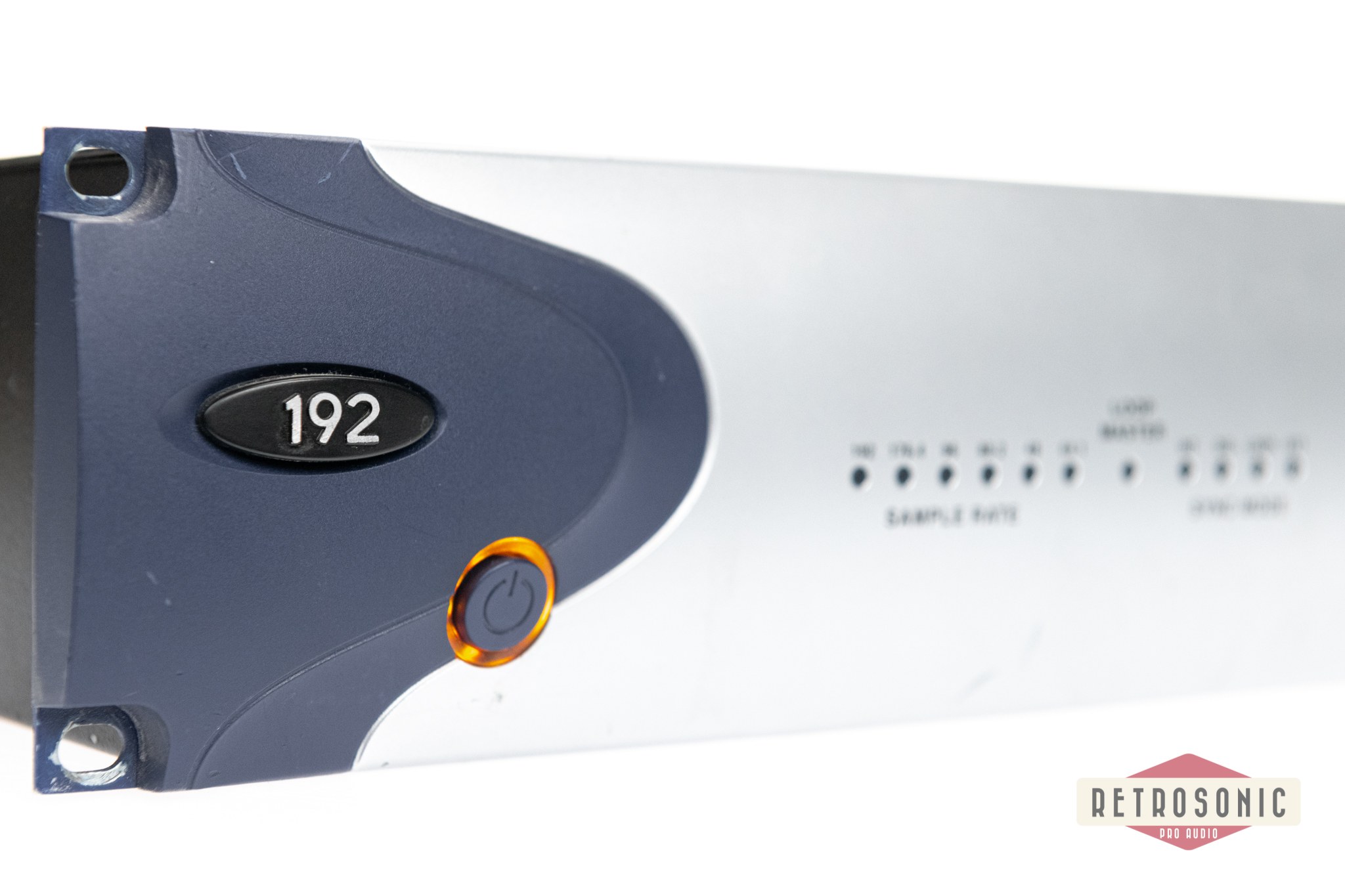

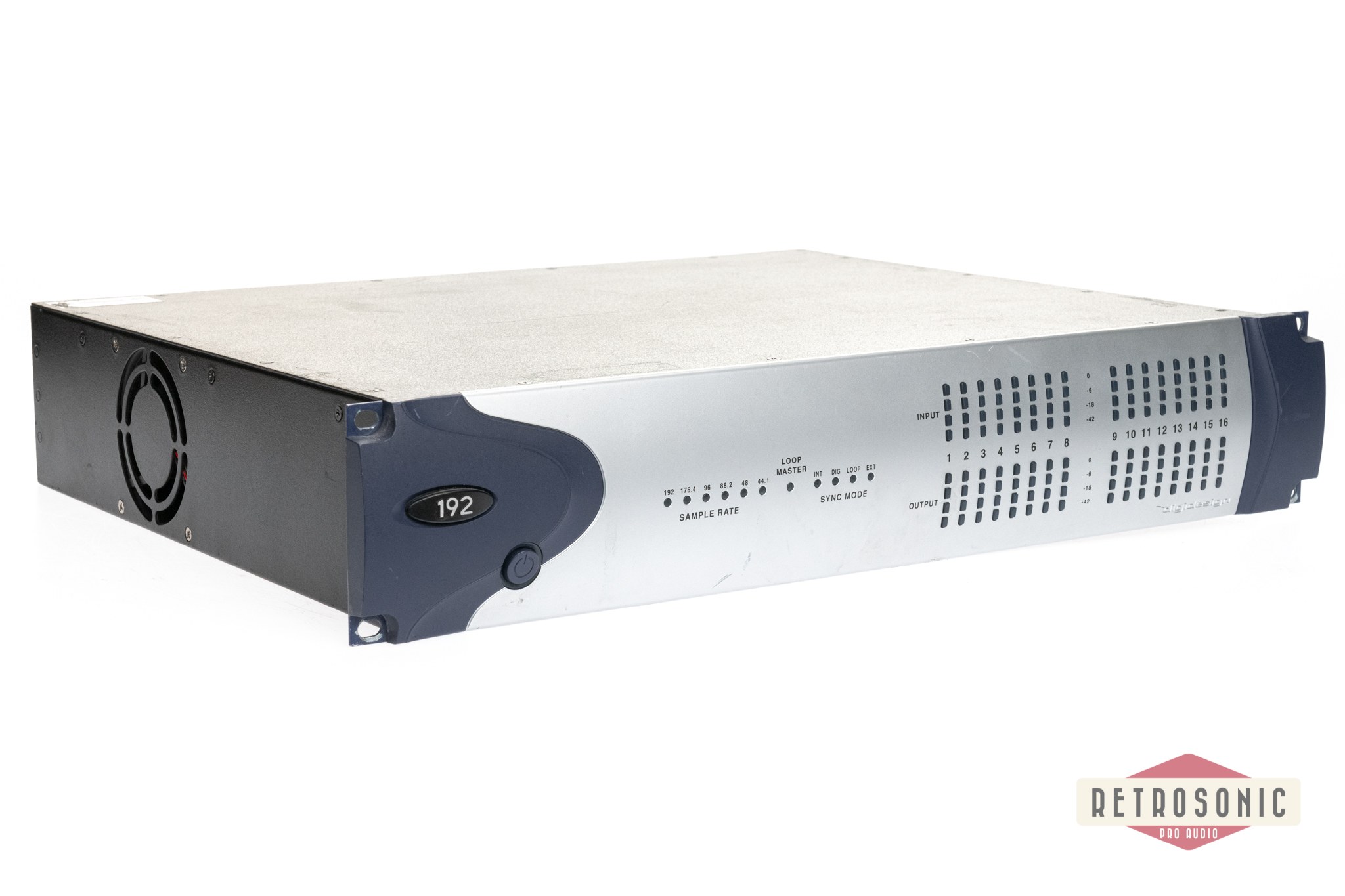

Digidesign Avid 192 Analog I/O 16x16 #4

This is a non functioning unit. Take on the challenge and repair it yourself, use it for parts, or use it to cover an empty space in your rack!

Not booting. Not serviced by us, sold as is. Cards work, tested by customer.

Avid/Digidesign 192 I/O is a classic Pro Tools HD interface. A flagship converter only a decade ago, nowadays, 192 I/O is very affordable, while still offering amazing conversion quality up to 192 kHz in 24 bit.

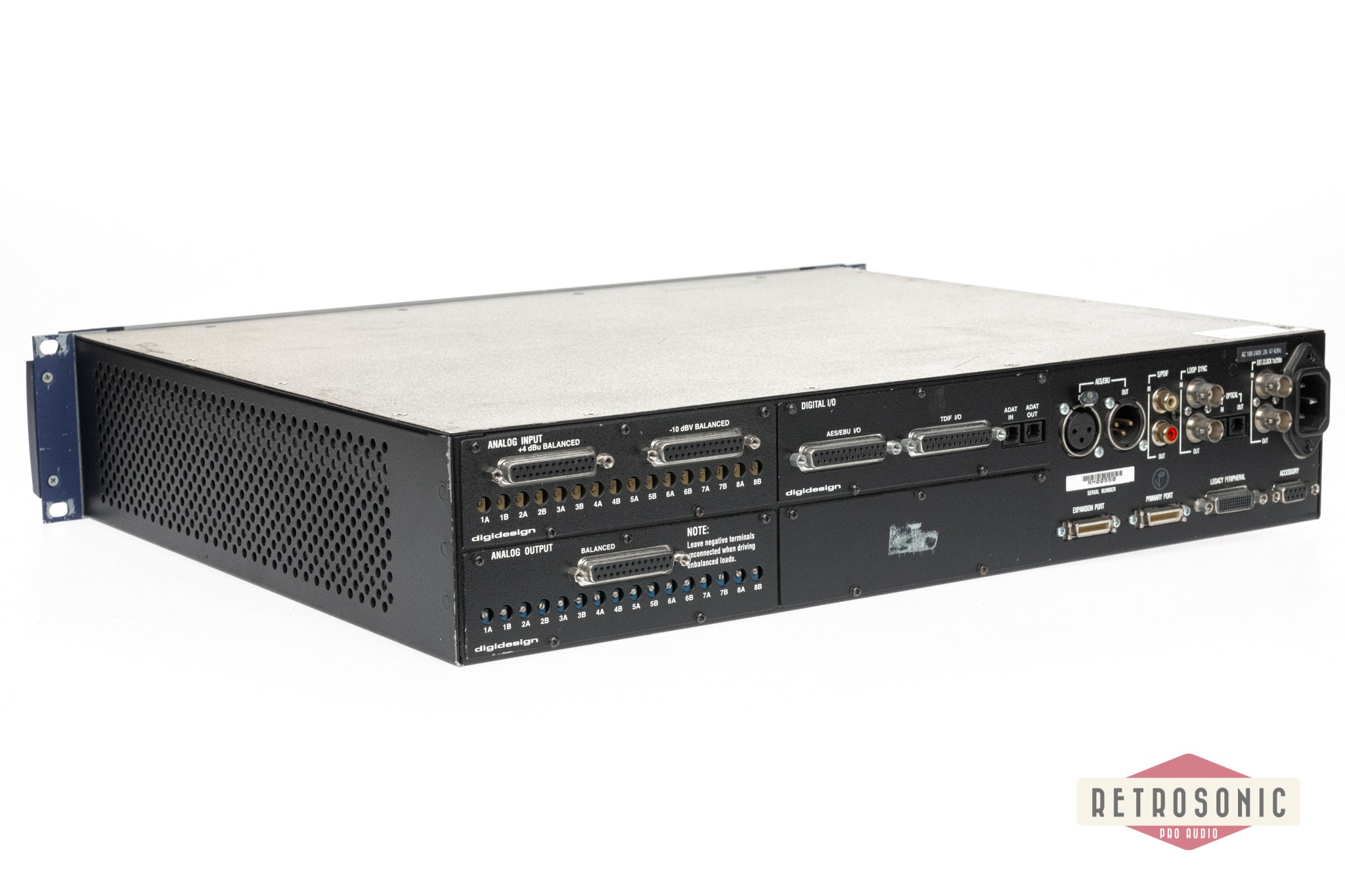

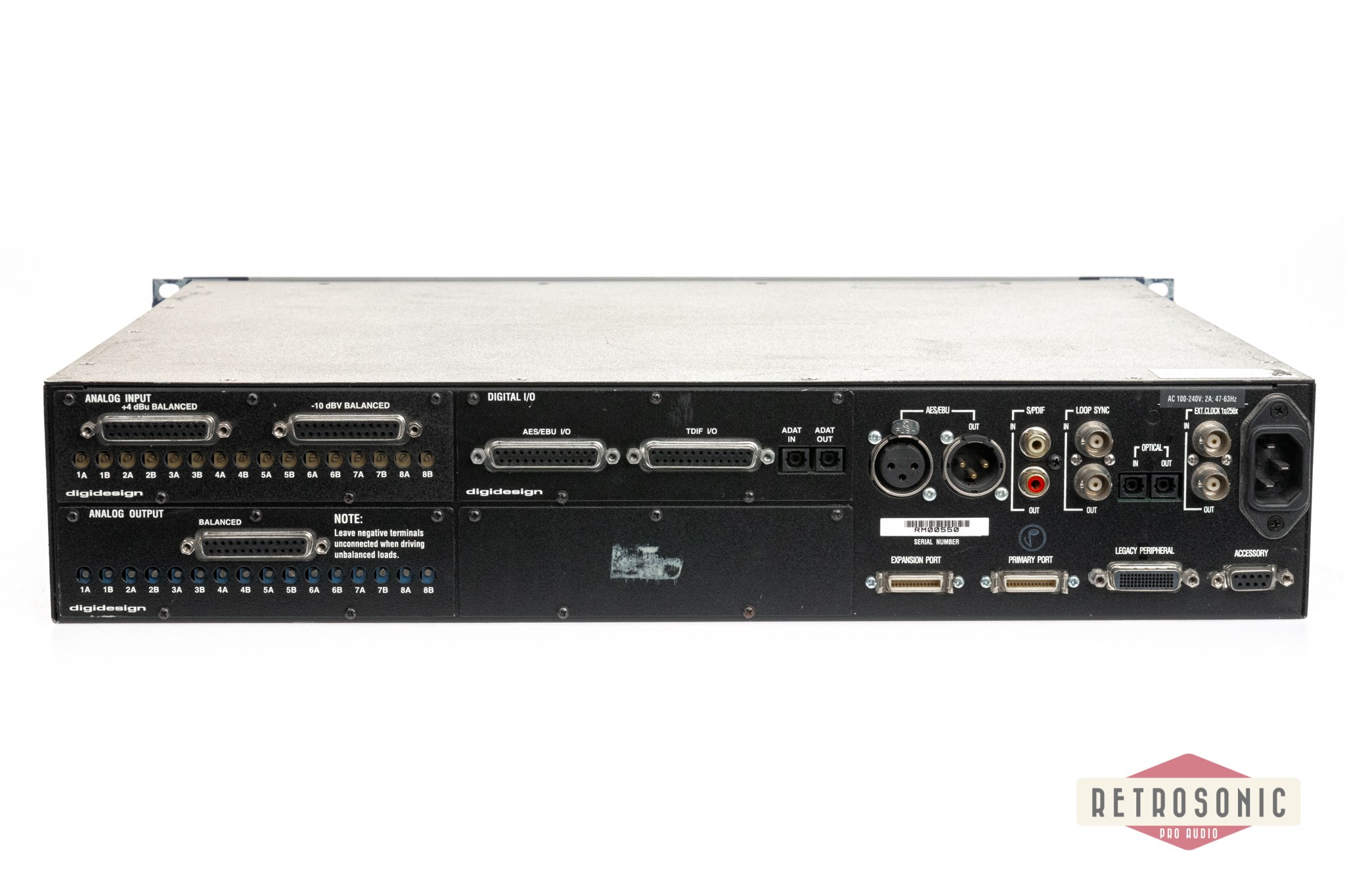

This unit is equipped with:
- Analog input card
- Analog output card
- Digital I/O card with Aes/Ebu, Tdif and ADAT connectivity.

192 I/O Features
• 16 discrete channels of input and output, with 4-segment LED Meters to monitor input and output on each channel. Input and Out- put channels can include:
• Eight channels of 24-bit D/A and A/D con- verters for superior analog input and out- put at sample rates of 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, and 192 kHz
• Ten channels of 24-bit-supported AES/EBU I/O. Eight-channel AES/EBU I/O supports sample rates of up to 96 kHz on all chan- nels, and up to 192 kHz on four channels simultaneously. Two-channel AES/EBU I/O supports sample rates of up to 96 kHz.
• Sixteen channels of Optical I/O, through two pairs of Lightpipe (ADAT) connectors; one pair of optical ports can be switched to two channels of optical S/PDIF I/O
• Two 24-bit-capable S/PDIF I/O supporting sample rates of up to 96 kHz
• Real-time sample rate conversion on inputs of eight channels of either AES/EBU, Optical, or TDIF.
• External Clock input and output for synchro- nizing 192 I/O with external 1x Word Clock or 256x (Slave Clock) devices.
• Legacy Port for Digidesign-qualified Pro Tools|24 MIXTM audio interfaces.
• Optional addition of cards to expand analog or digital I/O.
• Simultaneous use of multiple Pro Tools|HD® audio interfaces to further expand system in-put and output.

PSU operates on 100-240V, EU power cord included.

NOT SERVICED BY US, SOLD AS IS.
